Guide to install Apache ActiveMQ on Ubuntu 20.04

Apache ActiveMQ is a free, open-source, Java-based message broker software from the Apache Foundation. It is used to send messages between different applications and also offers additional features such as STOMP, JMS, and OpenWire. It supports industry-standard protocols that enable communication between different applications.

Apache ActiveMQ is the best choice for you if you are looking for a powerful message broker for your applications.

In this tutorial, we will show you how to install Apache ActiveMQ on Ubuntu 20.0

Requirements

A server was running Ubuntu 20.04.

The server is configured with a root password.

Install Java

Apache ActiveMQ is a Java-based application, so Java must be installed on your server. If it’s not installed, you can install it with the following command:

apt-get install openjdk-11-jdk openjdk-11-jre -y

After installation, you can check the Java version with the following command:

java version

You should get the following output:

OpenJDK version "11.0.8" 2020-07-14
OpenJDK Runtime Environment (build 11.0.8+10-post-Ubuntu-0ubuntu120.04)
OpenJDK 64-Bit Server VM (build 11.0.8+10-post-Ubuntu-0ubuntu120.04, mixed mode, sharing)

Install Apache ActiveMQ

At the time of writing this tutorial, the latest version of ActiveMQ is 5.16.0. You can download them with the following command:

wget https://downloads.apache.org//activemq/5.16.0/apache-activemq-5.16.0-bin.tar.gz

Once the download is complete, unzip the downloaded file with the following command:

tar -xvzf apache-activemq-5.16.0-bin.tar.gz

Next, move the unzipped directory to the /opt directory with the following command:

mv apache-activemq-5.16.0 /opt/activemq

Next you need to create a new user and group to run Apache ActiveMQ. You can create them with the following command:

addgroup --quiet --system activemq
adduser --quiet --system --ingroup activemq --no-create-home --disabled-password activemq

Next, change the ownership of the /opt/activemq directory to activemq as shown below:

chown -R activemq:activemq /opt/activemq

When you’re done with that, you can move on to the next step.

Create a systemd service file for ActiveMQ

Next you need to create a systemd service file to manage the ActiveMQ service. You can create them with the following command:

nano /etc/systemd/system/activemq.service

Add the following lines:

[unit]
Description=Apache ActiveMQ
After=network.target
[Service]
Type=forking
User=activemq
group=activemq

ExecStart=/opt/activemq/bin/activemq start
ExecStop=/opt/activemq/bin/activemq stop

[Install]
WantedBy=multi-user.target

Save and close the file when finished. Then you reload the systemd daemon with the following command:

systemctl daemon-reload

Next, start the ActiveMQ service and enable it to start on system reboot with the following command:

systemctl start activemq
systemctl enable activemq

Now you can check the ActiveMQ service status with the following command:

systemctl status activemq

You should get the following output:

? activemq.service - Apache ActiveMQ
     Loaded: loaded (/etc/systemd/system/activemq.service; disabled; vendor preset: enabled)
     Active: active (running) since Sat 2020-08-01 11:43:25 UTC; 22s ago
    Process: 31092 ExecStart=/opt/activemq/bin/activemq start (code=exited, status=0/SUCCESS)
   Main PID: 31165 (java)
      Tasks: 49 (limit: 2353)
     Memory: 190.5M
     CGroup: /system.slice/activemq.service
             ??31165 /usr/bin/java -Xms64M -Xmx1G -Djava.util.logging.config.file=logging.properties -Djava.security.auth.login.config=/opt/ac>

Aug 01 11:43:25 ubuntu2004 systemd[1]: Starting Apache ActiveMQ...
Aug 01 11:43:25 ubuntu2004 activemq[31092]: INFO: Loading '/opt/activemq//bin/env'
Aug 01 11:43:25 ubuntu2004 activemq[31092]: INFO: Using java '/usr/bin/java'
Aug 01 11:43:25 ubuntu2004 activemq[31092]: INFO: Starting - inspect logfiles specified in logging.properties and log4j.properties to get deta>
Aug 01 11:43:25 ubuntu2004 activemq[31164]: INFO: pidfile created : '/opt/activemq//data/activemq.pid' (pid '31165')
Aug 01 11:43:25 ubuntu2004 systemd[1]: Started Apache ActiveMQ.
lines 1-16/16 (END)

At this point, ActiveMQ is running and listening on port 8161.

Access to the Apache ActiveMQ web interface

By default, Apache ActiveMQ is configured to access from localhost. So you have to configure it for access from external hosts. You can configure this by editing the /opt/activemq/conf/jetty.xml file:

nano /opt/activemq/conf/jetty.xml

Find the following line:

        <property name="host" value="127.0.0.1"/>

Replace them with the following line:

        <property name="host" value="your-server-ip"/>

Save and close the file and restart the Apache ActiveMQ service to apply the changes:

systemctl restart activemq

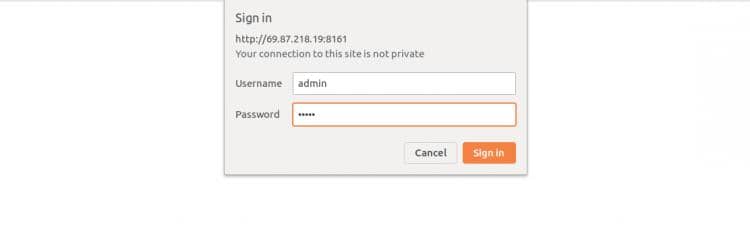

Now open your web browser and call Apache ActiveMQ via the URL http://your-server-ip:8161:/ admin . You will be asked for a username and password (see below):

Apache ActiveMQ

Enter the default username and password admin/admin and click on the “ Login ” button . You should see the Apache ActiveMQ Dashboard on the following screen:

-Apache ActiveMQ Dashboard

Conclusion

Congratulation! You have successfully installed Apache ActiveMQ on Ubuntu 20.04. Now you can start developing your first ActiveMQ messaging application.
